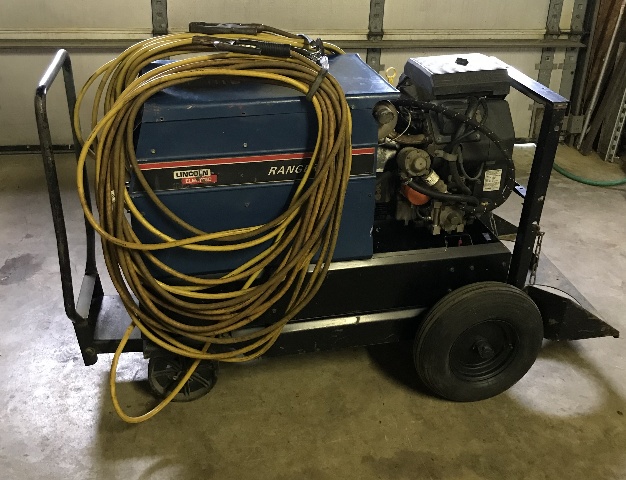

LINCOLN ELECTRIC RANGER 8/ LPG Welder/ Generator, Code No. 10541 (1813 Hours)

$2,250.00
Details
  • In Stock: 1
  • Brand: Lincoln
  • Condition: Used
  • Notes: Please contact us for a Freight Quote for this item.
  • SKU: DIS7924
  • Model: K1016-1
  • Country of Manufacture: United States
  • Manufacturer Part Number: 10541
  • Voltage Rating: 115/230 V
  • Manufacturer: Lincoln
  • Horsepower (HP): 1.5 HP
  • Hours: 1813
  • Serial Number: U1990614655
  • Listed By: Barb

LINCOLN ELECTRIC RANGER 8/ LPG Welder/ Generator
Model No.K1016-1
Code No. 10541

GENERAL DESCRIPTION
The Ranger 8 LPG is a twin-cylinder LPG fuel engine driven multiprocess arc welder and AC power generator. It is built in a heavy gauge steel case for durabilityon the job site.
1813 Hours
Both leads are 75ft long.

DESIGN FEATURES

AC/DC STICK WELDING (Constant Current)

• AC 40 - 225 Amps
• DC 40 - 210 Amps
• 100% Duty Cycle on All Settings
• Output Selector with 6 Ranges
• Output Control for Fine Current Adjustment
• Use with a broad range of AC & DC ElectrodesIncluding Fleetweld 5P

DC SEMIAUTOMATIC WIRE FEED WELDING
(Constant Voltage)

• CV Tap Setting for 60-200 Amps.
• 100% Duty Cycle
• Excellent Performance with .068” (1.7mm)NR-211-MP Innershield Electrod.
Limited MIG Welding with L-50 & L-56 using blendedArgon Shielding Gas.
• The Recommended Wire Feeder is the LN-25, but Can Also be Used with the LN-7 Wire Feeder.(LN-7 and LN-25 without Contactor Requires theK240 Contactor Kit).

AC/DC TIG WELDING
(Constant Current)

• AC & DC TIG Welding Can be Done at All ConstantCurrent Output Range Settings.

AUXILIARY POWER
• 8000 Watt AC 115/230 Volt 60 Hz. Generator.
• Operates AC Power Tools
.
• Powers Battery Chargers
.
• Powers a 1.5 HP Motor (If Started Under No Load).
• Lights Eighty 100 Watt Incandescent Bulbs
.
• Can be Used for Standby Power.

OTHER FEATURES
• Polarity Switch for Selecting DC+, DC-, or ACWelding Output.
• K930-1 TIG Module Available for high frequencyand shielding gas control for AC and DC GTAW(TIG) welding applications.
• Remote Control Receptacle Kit Available.
Electronic Engine Idler. Engine Automatically Goes toLow Idle in 10 to 14 Seconds after Welding or Useof Auxiliary Power. Includes High Idle Switch.
• Electric Starting.
• Battery Charging Ammeter.
• Full 8 kVA Auxiliary Output Receptacle.
• Factory Installed Engine Hour Meter.
• Engine Protection Shuts Engine Down in theEvent of Low Oil Pressure.
• Built-in Feet for Easy Mounting to Truck Bed orTrailer.
• All Copper Alternator Windings and HighQuality Insulation for Long-Life andDependability
• Powder Painted Case and Base for OutstandingCorrosion Protection
.
• Quiet muffler with reversible exhaust feature; eitherright or left side of machine.

ENGINE
The Kohler 20 HP Command LPG engine offers the following features

:
• Air Cooled, Twin-Cylinder.
• Overhead valves• Hydraulic valve lifters
• Cast Aluminum Alloy Crankcase with Integral CastIron Cylinder Liners.
• Electric Start with Solid State Battery ChargingModule
• Solid State Breakerless Ignition.
• Spin on Oil Filter.
• Low Oil Pressure Shutdown Protection.
• LPG regulator and vaporizer.

This Lincoln Welder is in good condition,
NOTE: Fan cover has a small broken section but does not effect how it runs (See last photo )
Starts and runs great!


See photos for more details
